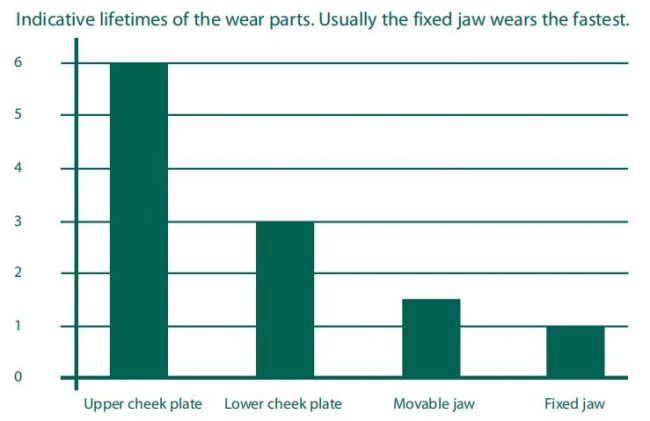

Jaw crusher wear parts include: Upper cheek plates Lower cheek plates Movable jaw Fixed jaw In normal working conditions, different wear parts have different wear ratios. In order to avoid damage the jaw crusher, we must know every wear part wear ratio. The following is the ratio figure: The wear ratio: Fixed jaw > movable…

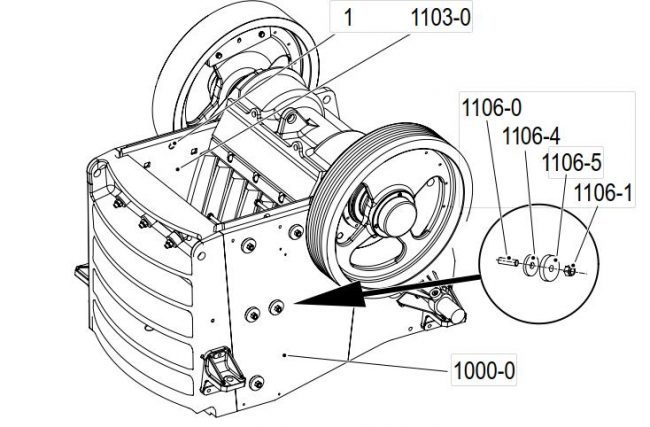

Cheek plates are one of the most important jaw crusher wear parts. After a long time working, those cheek plates need exchange. How to exchange jaw crusher cheek plates? How to install jaw crusher cheek plates? How to exchange jaw crusher cheek plates? When start to exchange jaw crusher cheek plates, the following wear parts…

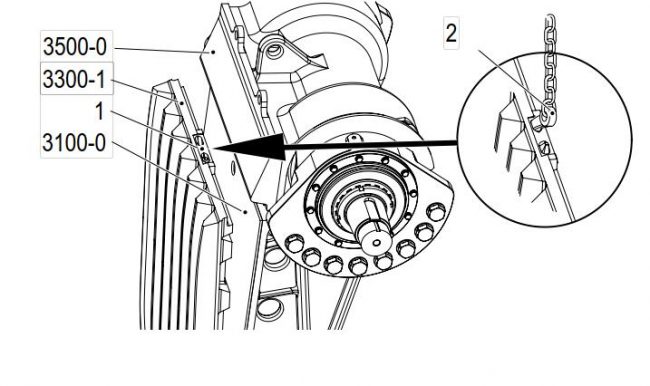

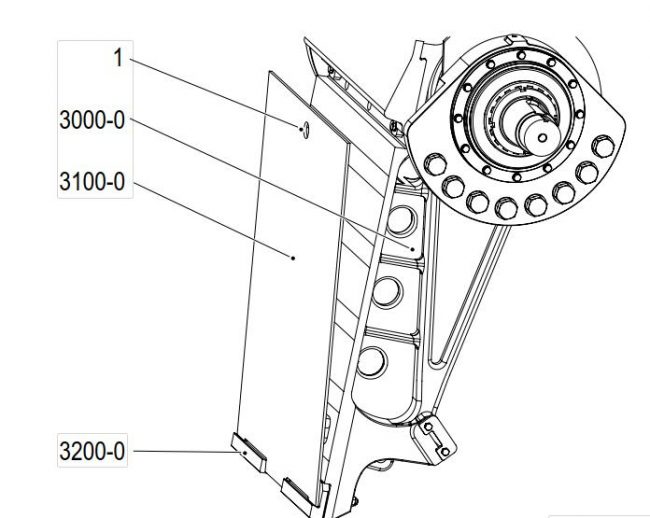

How to exchange jaw crusher wear plates? What needs notice when exchanging jaw crusher wear plate? 3000-0 Jaw (moving) 3100-0 Wear plate 3200-0 Support bar 3200-1 Lifting eye Recommended tools: Crow bar, Lifting tackle, and chain Mobile crane The following wear parts are required: New jaw crusher wear plates New side wear plates Some things…

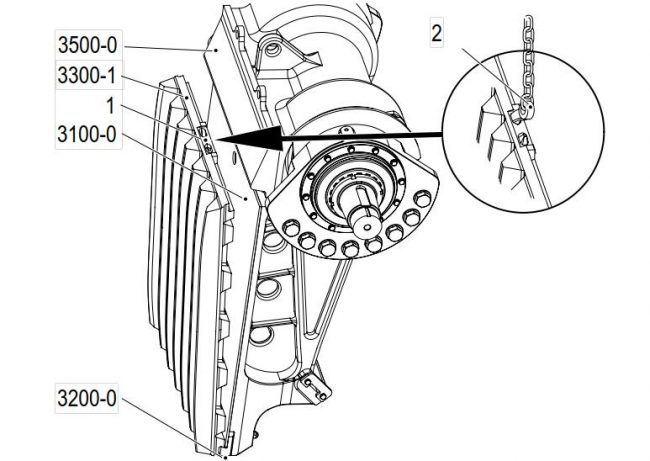

There are some things that need to notice when installing jaw plates. 3500-0 Deflector plate (moving jaw) 3300-1 Jaw plate 3100-0 Wear plate 3200-0 Support bar. 1 Lifting cavity,2 Lifting tool. If planning to exchange wear plates (3100-0), cheek plates, deflector plate (3500-0), and/or support bars (3200-0) at the same time, please proceed to the…
After a long time running, jaw plates need an exchange. The following wear parts are required: A new fixed jaw plate A new movable jaw plate Never weld external lifting eyes to the jaw plates. Always use the referred lifting cavity on the jaw plate and the lifting tool provided with the jaw crusher. …
Maintenance for these parts must be carried out only by trained or authorized personnel, but the inspection can be performed by the operator. Worn components should be replaced in good time to avoid damaging the toggle plate or toggle seats, with a consequent need for expensive repairs. Sandvik recommends exchanging the toggle plate (5006-0) and…
To ensure optimum performance and cost-effective production it’s important to frequently inspect the following parts and to replace them before they are completely worn out. 3500-0 Deflector plate (moving jaw only) 3400-0 Clamping bar 3300-1 Jaw plate 3100-0 Wear plate 3200-0 Support bar Jaw plates The wear pattern and the adjustment of the jaw plates…
Jaw dies can either be turned end for end or replaced depending on their wear. The jaw dies can be turned once after their installation before they need to be replaced. Fixed Jaw Die Clean the jaw die lifting holes. Remove stones and sand from the jaws. Remove material packed between the jaw and side…
Jaw plates can either be turned end for end or replaced depending on their wear. The jaw dies can be turned once after their installation before they need to be replaced. Dismantling Fixed Jaw Plates Clean the jaw die lifting holes. Remove stones and sand from the jaws. Also, remove material packed between the jaw…
Protection plates are designed for additional protection of the crusher’s frame and pitman. They are recommended when using small settings (always greater than or equal to the minimum recommended setting) and/or when the rock to be crushed is very hard (i.e. very low crushability). Of course, these can be used at any time for added…
