Wear is produced when two elements press against each other, such as an apron liner, blow bars, and crushing material. During this process, small materials from each element become detached, causing the surface to wear away. A primary factor in wear for crushing applications is abrasion. The blow bars on the rotor of an impact…
DetailsRock is fed into a large opening at the top of the cone crusher where it is squeezed between the mantle and the cone. As the size of the rock decreases, pieces fall into lower levels of the crusher where they continue to be worn and broken down further. Once small enough, the fragments of…
Details

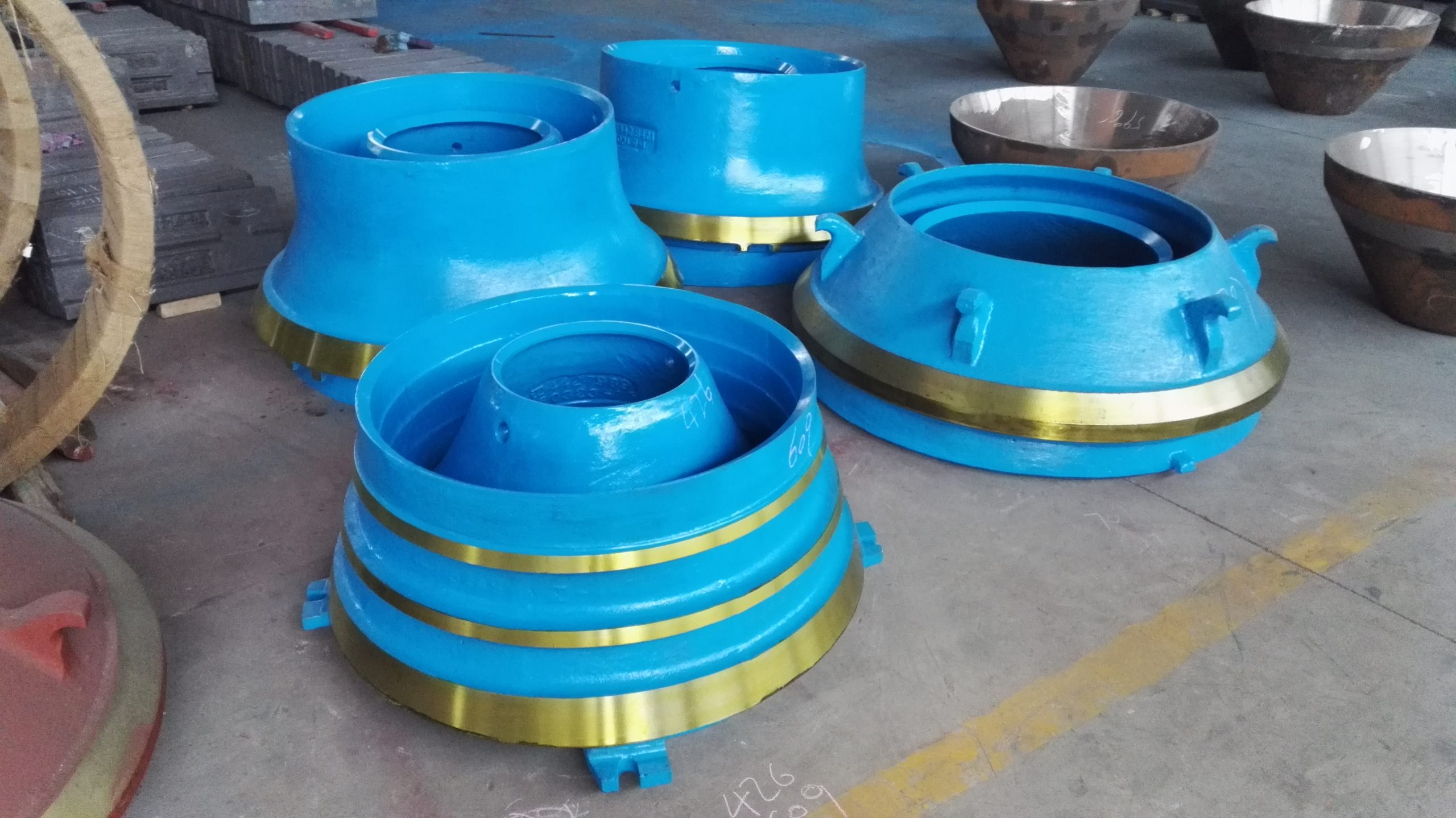

What is manganese cone crusher liners? Cone crusher liners include mantle and concave. Mantle: Covers the cone head of the crusher to protect it from wear. It is the inner sacrificial wear liner that sits on the cone head. Concave: Sits in the upper frame of the crusher to protect it from wear. It is…
Details
Crush different materials need different cone crusher cavities. The suitable cavities will help you get more profit and crush more material. Normally, there are six kinds of cone crusher mantles and concaves types: Standard Medium Fine Coarse Extra Coarse Extra Fine A wide range of liners are available to accommodate coarse and fine feeds, but…
DetailsTo protect the jaw crusher body that is the function of cheek plates, on the other hand, the cheek plates don’t direct to crush stones or ores. So jaw crusher cheek plates are manufactured by manganese steel. However, we also use chrome steel and TIC insert steel to suit different work conditions.
DetailsThe functions of cheek plates: The cheek plates functions that protect the crusher body not to damage.
Which brand of crusher jaw plates can be supplied? Qiming Machinery’s crusher aw plates patterns suit for those types of jaw crusher: CJ series. CJ211,CJ409,CJ411,CJ412,CJ612,CJ613,CJ615,CJ815 C series. C80,C100,C125,C130,C110,C140,C145,C150,C160,C200,C3054 PE series. PE 250*400,PE 400*600,PE-500*750,PE-600*900,PE-750*1060,PE-750*1060,PE-870*1060,PE-900*1200I,PE-900*1200,PE-1000*1200,PE-1200*1500,PE-1500*1800 PEX series. PEX-150*750,PEX-250*1000,PEX-250*1200,PEX-300*1300 PEW series. PEW250×1000,PEW250×1200,PEW400×600,PEW760,PEW860,PEW1100 If you have other types of jaw crushers, we also can supply measure the drawings service. …
DetailsCrush different kinds of stones or ores, it needs different jaw crusher tooth types to suit. There are some popular jaw plate tooth profiles and uses. Tooth Profile: Standard Tooth Uses: Suitable for both rock and gravel crushing; Wear life, power requirements, and crushing stresses in good balance; Typical factory installation. Tooth Profile:…
DetailsBased on different working conditions, Qiming Machinery supplies different materials to suit. There are 4 kinds of materials for jaw plates. Manganese Steel Jaw Plates Manganese steel is made by alloying steel, containing 0.8 to 1.25% carbon, with 11 to 15% manganese. Mangalloy is unique non-magnetic steel with extreme anti-wear properties. The material is very resistant to abrasion and will achieve…
DetailsA Jaw Crusher reduces large size rocks or ore by placing the rock into compression. A fixed jaw, mounted in a “V” alignment is the stationary breaking surface, while the movable jaw exerts force on the rock by forcing it against the stationary plate. Normally, it consists of a 1 piece fixed jaw plate and a 1 piece movable jaw plate.…
Details
