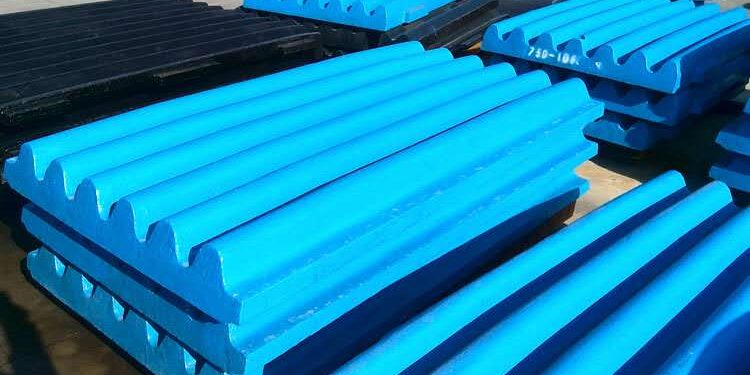

PE Series Jaw Crusher Parts From China Foundry With best Quality

PE series jaw crusher is the most popular jaw crusher types in China. Almost all of China crusher manufacturers have PE series jaw crusher. The series crushers are generally applied for primary crushing and broadly used for crushing all kinds of ores and stones such as limestone, ironstone, basalt, granite, etc. in mining, metallurgy, building materials, highway, railway, water conservation, and chemical industries, etc.

Where to find PE series jaw crusher parts?

Most of crusher plant manufacturers do not manufacture jaw crusher parts by themselves. There are hundreds of jaw crusher parts suppliers in China. Choose the right parts supplier is a big question for crusher users. Qiming Machinery is a casting foundry who supply kinds of tyes jaw crusher wear parts. For spare parts, Qiming Machinery also stock some common parts, which can help you decrease the downtime.

PE Series Jaw Crusher Parts Catalogue

PE 60*100

PE 60*100 Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE60*100	K3100.1	Frame	Welding parts	1	23
2	PE60*100	K3100.2-1	Extrusion Plate 1	Q235A	1	0.47
3	PE60*100	K3100-1	Fixed jaw plate	ZGMN13	1	2
4	PE60*100	K3100-2	Side plate	Q235A	2	0.5
5	PE60*100	K3100-3	Bearing cap	Q235A	2	1.9
6	PE60*100	K3100-4	Extrusion Plate 2	Q235A	1	0.2
7	PE60*100	K3100-5	Movable jaw plate	ZGMN13	1	2.2
8	PE60*100	K3100-6	Jaw crusher body	ZG270-500	1	11
9	PE60*100	K3100-9	Adjustment nut	45	1	0.32
10	PE60*100	K3100-12	flywheel	HT150	1	8.7
11	PE60*100	K3100-13	ECCENTRIC SHAFT	40Cr	2	2.1
12	PE60*100	K3100-14A	Bushing	Q235A	2	0.06
13	PE60*100	K3100-16	Crusher body cap	HT150	2	0.3
14	PE60*100	K3100-17A	cap	HT150	2	0.18
15	PE60*100	K3100-18	Bushing	Q235A	2	0.15
16	PE60*100	K3100-19A	cap	HT150	2	0.3
17	PE60*100	K3100-20	Bushing	Q235A	2	0.13
18	PE60*100	K3100-21	Groove wheel	HT150	1	6.7
19	PE60*100	K3100-23	Motor Groove wheel	HT150	1	1.2
20	PE60*100	K3100-24	Tighten screws	Q235A	1	0.06
21	PE60*100	K3100-27	Extrusion Plate 3	Q235A	1	0.012
22	PE60*100	GB286-64	Bearing 3508		4	0.55
23	PE60*100	K3100-25	Spring 2.52087.5		1	0.08
24	PE60*100	GB1171-74	V belt(D=1250)		3	0.4
25	PE60*100	K3100.6	Toggle Plate		1
26	PE60*100	K3100-8	Adjustment bolt		1
27	PE60*100	K3100-28	Set		1

PE250*400

PE 250*400 Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE250*400	K3124-32	Fixed jaw plate	ZGMN13	1	90
2	PE250*400	K3124-29	Movable jaw plate	ZGMN13	1	114
3	PE250*400	K3124-28	Side plate	ZGMN13	2	35
4	PE250*400	K3124-22	Toggle Plate	HT150	1	17
5	PE250*400	K3124-31	Toggle Plate set	45	1	4.4
6	PE250*400	K3124-34	Toggle Plate set	45	1	4.6
7	PE250*400	K3124-23	Jaw crusher body	ZG270-500	1	400
8	PE250*400	K3124-21C	ECCENTRIC SHAFT	S45	1	116
9	PE250*400	K3124-20	Adjustment Set	QT500-7	1	60
10	PE250*400	K3124-18	Adjustment Plate	HT200	1	50
11	PE250*400	K3124-12C	Flywheel	HT200	1	224
12	PE250*400	K3124-2C	Groove wheel	HT200	1	206
13	PE250*400	K3124-16	Spring	60si2mn	1	3
14	PE250*400	K3124-8	Bushing	Q235A	2	3.6
15	PE250*400	K3124-9	Bushing	Q235A	2	2..1
16	PE250*400	K3124-4	washer	Q235A	2	0.1
17	PE250*400	K3124-6	Bushing	35	2	8.1
18	PE250*400	GB812-88	Nut	45	2	2.6
19	PE250*400	K3124-7	Top Cap	HT150	1	11
20	PE250*400	K3124Z-3	Top Cap	HT150	1	14
21	PE250*400	K3124Z-11	Top Cap	HT150	2	14
22	PE250*400	K3124-26	Wedge plate	ZGMN13	1	1.5
23	PE250*400	K31X04-37	Rods	Q235A	1	0.6
24	PE250*400	K3124-19	Adjustment bolt	Q235A	2	2.1
25	PE250*400	K3124-27	Square bolt	Q235A	4	1
26	PE250*400	K3124-30	side plate nuts	Q235A	2	0.5
27	PE250*400	K3124-35D	Fixed jaws nut	Q235A	2	1
28	PE250*400	K3124-1	Ring	Q235A	2	0.59
29	PE250*400	K3124.1-1	Movable Claws	HT150	2	1
30	PE250*400	K3124.1-2	Track	HT150	4	16
31	PE250*400	K3124.1-3	Slider	Q235A	1	0.4
32	PE250*400	K3124-15	washer	Q235A	1	1.16
33	PE250*400	K3124-17	washer	Q235A	1	1.02
34	PE250*400	K3124-13B	Motor Groove wheel	HT150	1	25
35	PE250*400	K3124-33	Frame		1	960
36	PE250*400	JB3120-84	Bearing 3628		4	36
37	PE250*400	K3124-25	Blockboard		1	0.35
38	PE250*400		Assembly		1	738
39	PE250*400				1	1170
40	PE250*400	C-4572			5	1.95
41	PE250*400	K3124Z-39		HT150	2	13.6

PE250*500

PE 250*500 Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE250*500	K3618.1HB	Frame		1	1084
2	PE250*500	K3168-2A	Fixed jaw die	ZGMN13-2	1	134.2
3	PE250*500	K3168-3	Movable jaw die	ZGMN13-2	1	126.37
4	PE250*500	K3168-4A	Rods	Q235A	1	4
5	PE250*500	K3168-5A	Toggle Plate set	45	1	4.83
6	PE250*500	K3168-6A	Toggle Plate	HT150	1	17
7	PE250*500	K3168-12A	Toggle Plate set	45	1	4.98
8	PE250*500	K3168-13	Adjustment Set	QT500-7	1	70
9	PE250*500	K3168-17A	Left protect plate	ZGMN13-2	1	43.12
10	PE250*500	K3168-18A	Right protect plate	ZGMN13-2	1	43.1
11	PE250*500	K3168-19A	Wedge plate	ZGMN13-2	1	27.3
12	PE250*500	K3168-21A	Crusher body	ZG270-500	1	550.9
13	PE250*500	K3168-22A	Flywheel	HT200	2	224.4
14	PE250*500	K3168-26	Motor Groove wheel	HT200	2	24.2
15	PE250*500	K3169Z-10	Cap	HT150	2	21.4
16	PE250*500	K3168-31A	Cap	HT150	2	6.9
17	PE250*500	K3168-32A	Gland	HT150	2	5.13
18	PE250*500	K3168-33A	Gland	HT150	1	6.06
19	PE250*500	K3168-36A	Cap	HT150	1	7
20	PE250*500	K3168-34	Bushing	35	2	7.23
21	PE250*500	K3169Z-16	Cap	HT150	1	21.4
22	PE250*500	K3168-41A	Groove wheel	HT200	1	206.4
23	PE250*500	K3168-37	Gland	HT150	1	6.6
24	PE250*500	K3168-42A	Eccentric shaft	S45	2	142
25	PE250*500	K3168-20A	Square bolt	Q235A	5	1.2
26	PE250*500	GB1171-89	V belt C-4500		4	1.35
27	PE250*500	JB3120-84	Bearing 3630		1	43
28	PE250*500		Assembly		1	970
29	PE250*500		Groove wheel		1	1405
30	PE250*500	K3169Z-2	Fixed jaw die	ZGMN13	1	136
31	PE250*500	K3169Z-3	Movable jaw die	ZGMN13	1	148.2
32	PE250*500	K3169Z-5	Left protect plate	ZGMN13	1	45.2
33	PE250*500	K3169Z-6	Right protect plate	ZGMN13	1	45.2
34	PE250*500	K3169Z-7	Wedge plate	ZGMN13	1	17.6

PE400*600

PE 400*600 Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE400*600	K3103-2	Fixed jaw die	ZGMN13-2	1	216
2	PE400*600	K3103-3a	Movable jaw die	ZGMN13-2	1	229
3	PE400*600	K3103-12	Left protect plate	ZGMN13-2	1	83
4	PE400*600	K3103-13	Right protect plate	ZGMN13-2	1	83
5	PE400*600	K3103-8	Toggle Plate set	HT150	1	61
6	PE400*600	K3103-5A	Toggle Plate	45	1	7
7	PE400*600	K3103-9A	Toggle Plate set	45	1	7
8	PE400*600	K3103-18	Moving crusher body	ZG270-500	1	1050
9	PE400*600	K3103-20	Eccentric shaft	S45	1	290
10	PE400*600	K3103-21	Adjustment set	QT500-7	1	99
11	PE400*600	K3103-22	Adjustment Gasket	Q235A	4	80
12	PE400*600	K3103-23	Adjustment Gasket	Q235A	2	30
13	PE400*600	K3103-17	Flywheel	HT200	1	548
14	PE400*600	K3103-41A	Groove wheel	HT200	1	490
15	PE400*600	K3103-30A	Cap	HT150	2	27
16	PE400*600	K3103-32	Cap	HT150	2	25
17	PE400*600	K3103-35	Cap	HT150	2	13
18	PE400*600	K3103-28	Gasket	Q235A	1	0.2
19	PE400*600	K3103-31	Tension Rod	35	2	1.7
20	PE400*600	K3103-4	Tension	Q235A	1	6.5
21	PE400*600	K3103-27	Spring	60Si2Mn	1	4
22	PE400*600	K3103-37	Tension Rod Bushing	35	2	10.3
23	PE400*600	K3103-32	Ring	Q235A	2	2
24	PE400*600	gb812-88	MX150*2 Nuts	45	2	2.5
25	PE400*600	K3103-33	Gland	HT150	2	12
26	PE400*600	K3103-34	Gland	HT150	2	12
27	PE400*600	K3103-40	Gland	HT150	2	14
28	PE400*600	K3103-15	Striped	ZGMN13	1	20
29	PE400*600	K3103-16	Nut	Q235A	3	1.6
30	PE400*600	K3103-26	washer	Q235A	1	2
31	PE400*600	K3103-28	washer	Q235A	1	2
32	PE400*600	K3125.3-1	Slider	Q235A	4	0.5
33	PE400*600	K3125.3-2	Track	HT150	2	16
34	PE400*600	K3124.1-1	Move Claws	HT150	2	1
35	PE400*600	K3103-29B	Motor Groove wheel	HT200	1	72
36	PE400*600	K3103-1	Frame		1	2500
37	PE400*600	GB1096-79	C36*250		2	1.8
38	PE400*600	K3103-HA-3	Nut	35	2	3
39	PE400*600	K3103-46		Q235A	2	0.6
40	PE400*600	K3103-24A	Nut

PE430*650

PE 430*650 Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE430*650	K3112-1	Fixed jaw die	ZGMN13-4	1	240
2	PE430*650	K3112-2	Movable jaw die	ZGMN13-4	1	251
3	PE430*650	K3112-3	Left protect plate	ZGMN13-4	1	74.8
4	PE430*650	K3112-4	Right protect plate	ZGMN13-4	1	74.8
5	PE430*650	K3112-5	side plate	ZGMN13-4	1	18.6
6	PE430*650	K3112-19	Eccentric shaft	S45	1	227

PE475*1050

PE 475*1050 Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE475*1050	K3219-11	Embedded cover	HT150	1	22
2	PE475*1050	K3219-12	Embedded cover	HT150	1	17
3	PE475*1050	K3219-14	CAP	HT150	2	25
4	PE475*1050	K3219-15	Gland	HT150	2	18
5	PE475*1050	K3219-16	Gland	HT150	2	20
6	PE475*1050	K3219-17	Embedded cover	HT150	1	18
7	PE475*1050	K3219-18	Tension Rod Bushing	35	1	16
8	PE475*1050	K3219-19	CAP	HT150	1	1050
9	PE475*1050	K3219-20	Seal cover	HT150	1	290
10	PE475*1050	K3219-2	Life protect plate	ZGMn13-2	1	95
11	PE475*1050	K3219-3	Right protect plate	ZGMn13-2	1	95
12	PE475*1050	K3219-9	Adjustment set	QT500-7	1	150
13	PE475*1050	K3219-22	Plate	Q235A	2	6
14	PE475*1050	K3219-23	Plate	Q235A	2	2
15	PE475*1050	K3219-26	Toggle plate	HT150	1	135
16	PE475*1050	K3219-1	Fixe jaw die	ZGMn13	1	460
17	PE475*1050	K3219-4	Movable jaw die	ZGMn13	1	515
18	PE475*1050	K3219-5	plate	ZGMn13	2	14
19	PE475*1050	K3219-7	Crusher body	ZG270-500	1	1700
20	PE475*1050	K3219-8	Eccentric shaft	S45	1	520
21	PE475*1050	K3219-10	Adjustment set	Q235A	11	122
22	PE475*1050	K3219-13	Retaining plate	Q235A	2	12
23	PE475*1050	K3219-32	Protect plate	Q235A	1	192
24	PE475*1050	K3219-6	Nuts	Q235A	4
25	PE475*1050	K3219-21	Ring	Q235A	2
26	PE475*1050	K3219-29	Nut	Q235A	2

PE500*750

PE 500*750 Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE500*750	K3204-1	Fixed jaw die	ZGMN13-2	1	466
2	PE500*750	K3204-2	Movable jaw die	ZGMN13-2	1	510
3	PE500*750	K3204-42	Left protect plate	ZGMN13-2	2	80
4	PE500*750	K3204-43	Right protect plate	ZGMN13-2	2	48
5	PE500*750	K3204-1	Frame		1	3388
6	PE500*750	K3204-4	Flywheel	HT200	1	927
7	PE500*750	K3204-22	Groove wheel	HT200	1	880
8	PE500*750	K3204-38	Toggle plate	HT150	1	121
9	PE500*750	K3204-37A	Toggle plate set	S45	1	24
10	PE500*750	K3204-39A	Toggle plate set	S45	1	24
11	PE500*750	K3204-2Y	crusher body	ZG270-500	1	1514
12	PE500*750	K3204-3	crusher body protect plate	Q235A	1	140
13	PE500*750	K3204-5	Eccentric shaft	S45	1	535
14	PE500*750	K3204-41B	Adjust seat	QT500-7	1	115
15	PE500*750	K3204-7A	Adjusting washer	Q235A	1	128.8
16	PE500*750	K3204-18	Tighten bushing	35	2	13.4
16	PE500*750	K3204-19	nut	45	2	4.3
17	PE500*750	K3204-23	nut	45	2	2.2
18	PE500*750	K3204-10	cap	HT150	1	17.3
19	PE500*750	K3204-9	cap	HT150	1	24.9
20	PE500*750	K3204-14	cap	HT150	2	28.7
21	PE500*750	K3204-17	cap	HT150	1	19.2
22	PE500*750	K3204-20	cap	HT150	1	25.5
23	PE500*750	K3204-12	Retaining plate	Q235A	2	10.8
24	PE500*750	K3204-11	Gland	HT150	2	18
25	PE500*750	K3204-13	Gland	HT150	2	18
26	PE500*750	K3204-25A	Pressure plate	Q235A	2	4
27	PE500*750	K3204-28	Briquettes	ZGMN13-2	1	11.9
28	PE500*750	K3204-30	Briquettes	ZGMN13-2	1	11.9
29	PE500*750	K3204-33A	Rods	Q235A	1	12
30	PE500*750	K3204-29	Square head bolts	Q235A	4	3.3
31	PE500*750	K3204-31	Fixed jaw die bolts	Q235A	2	3.5
32	PE500*750	K3204-24	washer	Q235A	2	0.41
33	PE500*750	K3204-8	Retaining ring	Q235A	2	5.8
34	PE500*750	K3204-34/36	washer	Q235A	1	2.1
35	PE500*750	K3204-35	Spring	60Si2Mn	2	12
36	PE500*750	K3204-32	Motor sheave	HT200	1	109
37	PE500*750	K3204-44	protect plate bolts	Q235A	8	0.8
38	PE500*750	3548Y	bearing		4	84
39	PE500*750		assembly		1	3024
40	PE500*750		flying troughs		1	4852
41	PE500*750		V belt		7	3.4
42	PE500*750	K3204-1D	Fixed jaw die	ZGMN13-2	1	480
43	PE500*750	K3204-2D	Movable jaw die	ZGMN13-2	1	560
44	PE500*750		Expansion sleeve		2

PE600*750

PE 600*750 Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE600*750	K3204-1	Fixed jaw die	ZGMN13-2	1	466
2	PE600*750	K3204-2	Movable jaw die	ZGMN13-2	1	510
3	PE600*750	K3204-2Y	Crusher body	ZG270-500	1	1514
4	PE600*750	K3204-3	Moving jaw protect plate	Q235A	1	140
5	PE600*750	K3204-4	Flywheel	HT200	1	927
6	PE600*750	K3204-5	Eccentric shaft	S45	1	535
7	PE600*750	K3204A-2	Adjustment Gasket	QT500-7	1	285
8	PE600*750	K3204A-3	Adjustment set	Q235A	1 SET	72.9
9	PE600*750	K3204-8	Rings	Q235A	2	5.8
10	PE600*750	K3204-9	Cap	HT150	1	24.9
11	PE600*750	K3204-10	Cap	HT150	1	17.3
12	PE600*750	K3204-11	Bushing	HT150	2	18
13	PE600*750	K3204-12	Retaining plate	Q235A	2	10.8
14	PE600*750	K3204-13	Bushing	HT150	2	18
15	PE600*750	K3204-14	Cap	HT150	2	28.7
16	PE600*750	K3204-17	Cap	HT150	2	19.2
17	PE600*750	K3204-18	Bushing	35	2	13.4
18	PE600*750	K3204-19	Nuts	45	1	4.3
19	PE600*750	K3204-20	Cap	35	2	25.5
20	PE600*750	K3204-21	Bushing	HT150	1	18.7
21	PE600*750	K3204-22	Groove wheel	HT150	2	880
22	PE600*750	K3204-23	Nuts	HT150	2	2.2
23	PE600*750	K3204-24	Ring	45	2	0.41
24	PE600*750	K3204A-5	Wedge	Q235A	1	5.5
25	PE600*750	K3204A-9	Gland	Q235A	1	1.1
26	PE600*750	K3204A-12	knockout pin	35	1	4.1
27	PE600*750	K3204A-13	washer	Q235A	1	1.94
28	PE600*750	K3204A-14	Toggle plate set	45	1	23.3
29	PE600*750	K3204A-15	Right Briquettes	ZGMN13-2	1	14.2
30	PE600*750	K3204A-16	Life Briquettes	ZGMN13-2	1	14.2
31	PE600*750	K3204A-17	Side protect plate	ZGMN13-2	1	59.6
32	PE600*750	K3204A-18	Side protect plate	ZGMN13-2	1	59.6
33	PE600*750	K3204A-19	Side protect plate	Q235A	1	126.6
34	PE600*750	K3204A-20	Side protect plate	Q235A	1	126.6
35	PE600*750	K3204A-21	Fixed plate	Q235A	2	4.5
36	PE600*750	K3204A-22	Toggle plate	45	2	2.2
37	PE600*750	K3204-38	Bolts	HT150	1	121
38	PE600*750	K3204-29	Side plate bolts	Q235A	4	3.3
39	PE600*750	K3204-44	Pressure plate	Q235A	2	0.8
40	PE600*750	K3204A-	Adjustment Gasket	Q235A	2	2.9
41	PE600*750	K3204A-	Adjustment set	Q235A	1 SET	55.7
42	PE600*750	JB3120-82	Bearing 3548Y		4	84.9
43	PE600*750	GB1171-89	V belt D5600		7	3.4

PE600*900

PE 600*900 Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE600*900	K3126-01-06D	Fixed jaw die	ZGMN13-2	1	800
2	PE600*900	K3126-02-20D	Movable jaw die	ZGMN13-2	1	735
3	PE600*900	K3126-02-12	Flywheel	HT200	1	1570
4	PE600*900	K3126-02-03	Groove wheel	HT200	1	1340
5	PE600*900	k3126-02-17	crusher body	ZG270-500	1	2310
6	PE600*900	K3126-00-10#A	Motor sheave	HT200	1	226
7	PE600*900	K3126-02-04	Top Cap	HT200	2	35
8	PE600*900	K3126-02-06	Top Cap	HT200	2	32
9	PE600*900	K3126-02-08	Top Cap	HT200	2	21
10	PE600*900	K3126-05-03	track	HT200	2	25
11	PE600*900	K3126-05-02	Bearing	HT200	2	1
12	PE600*900	K3126-02-22	Toggle Plate	HT200	1	140
13	PE600*900	K3126-02-18	Wedge plate	ZGMN13-2	1	20
14	PE600*900	K3126-02-19	Wedge plate	ZGMN13-2	1	20
15	PE600*900	K3126-02-13	Eccentric shaft	S45	1	600
16	PE600*900	K3126-04-03	Spring	60Si2Mn	1	21
17	PE600*900	K3126-02-21	Toggle Plate Set	45	1	28
18	PE600*900	K3126-03-02	Toggle Plate Set	45	1	30
19	PE600*900	K3126-01-04	Fixed jaw die bolts	45	2	2.5
20	PE600*900	K3126-01-05	Protection plate bolts	45	8	1.2
21	PE600*900	K3126-03-06	Screw		4	3.4
22	PE600*900	K3126-04-02	washer	Q235A	1	4
23	PE600*900	K3126-04-04	washer	Q235A	1	2.5
24	PE600*900	K3126-02-14	Screw	Q235A	4	5.5
25	PE600*900	K3126-02-05	Bushings	Q235A	2	9
26	PE600*900	K3126-02-07	Bushings	Q235A	2	7
27	PE600*900	K3126-02-09	Bushings	Q235A	2	15
28	PE600*900	K3126-04-01	Rod	Q235A	1	19
29	PE600*900	K3126-03-05	Rods bolts	Q235A	2	4.5
30	PE600*900	K3126-02-11	Cap	Q235A	2	20
31	PE600*900	K3126-02-10A	Bushings	Q235A	2	3
32	PE600*900	K3126-01-02	Protection plate	ZGMN13	2	132
33	PE600*900	K3126-01-07	Protection plate	ZGMN13	2	84
34	PE600*900		Bearing 3640		2	100
35	PE600*900		Bearing 3003748		2	70
36	PE600*900	K3126	Frame		1	4734
37	PE600*900		Assembly		1	4109
38	PE600*900		Groove wheel		1	6913
39	PE600*900	D-6350	V belts		8

PE600*900H

PE 600*900H Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE600*900H	K3126R-8	crusher body		1	2178
2	PE600*900H	K3126-01-06D	Fixed jaw die	ZGMN13-4	1	735
3	PE600*900H	K3126-02-20D	Movable jaw die	ZGMN13-4	1	800
4	PE600*900H	K3126H-4	Groove wheel	HT200	1	1312
5	PE600*900H	K3126H-19	Flywheel	HT200	1	1415
6	PE600*900H	K3126H-24	Motor Groove wheel	HT200	1	96
7	PE600*900H	K3126H-5	Top Cap	HT200	1	12.8
8	PE600*900H	K3126H-6	Top Cap	HT200	1	12.4
9	PE600*900H	K3126C-20	Apron	Q235A	2	9
10	PE600*900H	K3126H-7	Cap	Q235A	2	10
11	PE600*900H	K3126H-9	Inner ring	HT200	2	19
12	PE600*900H	K3126H-10	Cap	HT200	1	12
13	PE600*900H	K3126H-11	Bushings	35	2	13.2
14	PE600*900H	K3126H-13	Rings	Q235A	2	16.6
15	PE600*900H	K3126H-14	Rings	Q235A	1	0.25
16	PE600*900H	K3126H-16	Nut	45	2	4
17	PE600*900H	K3126H-17	Cap	HT200	1	16
18	PE600*900H	K3126H-18	Rings	HT200	2	12
19	PE600*900H	K3126H-20	Counterweight	Q235A	2	20
20	PE600*900H	K3126H-21	NUT 190*3	45	1	3.5
21	PE600*900H	K3126H-27	NUT 190*3	45	2	3.5
22	PE600*900H	k3126c-31	Adjust set	QT500-7	1	332
23	PE600*900H	k3126c-33	Toggle plate	HT150	1	136
24	PE600*900H	K3126C-38A	Toggle plate set	45	1	29
25	PE600*900H	K3126C-35A	Toggle plate set	45	2	28
26	PE600*900H	K3126-05-03	armrest	HT200	2	25
27	PE600*900H	K3126-05-02	Bearing	HT200	2	1
28	PE600*900H	K3126-04-03	Spring	60Si2Mn	1	21
29	PE600*900H	K3126C-34	Rods	Q235A	1	22
30	PE600*900H	K3126-04-02	Washer	Q235A	1	5
31	PE600*900H	K3126-04-04	Washer	Q235A	1	2.4
32	PE600*900H	K3126C.GJ-1	Screw	Q235A	1	7.6
33	PE600*900H	K3126C.3	Apron	Q235A	1	150
34	PE600*900H	K3126C-41A	Upper Protection Plate	ZGMN13-2	2	155
35	PE600*900H	K3126C-40A	Down Protection Plate	ZGMN13-2	2	84
36	PE600*900H	K3126C-1	Side plate bolt	45	2	1.3
37	PE600*900H	K3126H-28	Plate	ZGMN13-2	1	25.6
38	PE600*900H	K3126H-29	Plate	ZGMN13-2	1	25.6
39	PE600*900H	K3126C-3	Fixed plate bolt	45	2	2.6
40	PE600*900H	K3126C-2A	Bolt	Q235A	6	6
41	PE600*900H	K316H-22	Wedges	Q235A	2	7.8
42	PE600*900H	3003748k	Bearing		4	153
43	PE600*900H	K3126H-2	Eccentric shaft	45	1	557
44	PE600*900H		ASSEMBLY		1	4109
45	PE600*900H		Groove wheel		1	6913
46	PE600*900H	D-6300	V belts		5
47	PE600*900H	K3126C-12	Adjust set		1	69.5
48	PE600*900H	K3126C-13	Adjust set		1	76.5
49	PE600*900H		170
50	PE600*900H	GB6170-86	Bolt M30*190
51	PE600*900H		V belts
52	PE600*900H
53	PE600*900H		M42
54	PE600*900H

PE620*900

PE620*900 Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE620x900	K3126-01-06D	Fixed jaw plate	ZGMn13	1	735
2	PE620x900	K3126-02-20D	Movable jaw plate	ZGMn13	1	800
3	PE620x900	K3126C-41A	Side protect plate	35	2	155
4	PE620x900	K3126C-40A	Side protect plate	ZGMn13	2	84
5	PE620x900	K3126C-6A	Pressure plate	ZGMn13	1	25.6
6	PE620x900	K3126C-7A	Pressure plate	ZGMn13	1	25.6
7	PE620x900	K3126C-9	Eccentric shaft	45	1	557

PE750*1060

PE 750*1060 Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE750x1060	K3206.1	Frame		1	10050
2	PE750x1060	K3206-1	Down oblique iron	ZGMn13	1	37
3	PE750x1060	K3206-2	F Bolts	35	4	2.2
4	PE750x1060	K3206-3B	Fixed jaw	ZGMn13	1	1500
5	PE750x1060	K3206-5	Liner set	45	1	23
6	PE750x1060	K3206-8G	Toggle Plate		1	230
7	PE750x1060	K3206-9	Rods	45	2	25
8	PE750x1060	K3206-11	Liner set	45	1	26
9	PE750x1060	K3206-12	Adjustment set		1	274
10	PE750x1060	K3206-13a	Adjustment	A3F	1 SET	217
11	PE750x1060	K3206-14	Spring	60SiMn	2	17.5
12	PE750x1060	K3206-15	Fixed jaw bolts	35	4	1.3
13	PE750x1060	K3206-16	Fixed jaw oblique iron	ZGMn13	1	46.4
14	PE750x1060	K3206-19A	Side protect plate	Q235A	2	350
15	PE750x1060	K3206-20B	Movable Jaw	ZGMn13	1	1500
16	PE750x1060	K3206-21	Movable Jaw oblique iron	ZGMn13	1	44
17	PE750x1060	K3206-22	Movable Jaw bolts	35	4	10
18	PE750x1060	K3206-9S	Eccentric shaft	S45	`1	1580
19	PE750x1060	K3206-25	Moving jaws	ZG270-500	1	4480
20	PE750x1060	K3206-27A	Motor Groove wheel	HT150	1	230
21	PE750x1060	K3206-29	Flywheel		1	1960
22	PE750x1060	K3306-23S	Gland	HT150	2	33
23	PE750x1060	K3306-16S	Gland	HT200	2	61.4
24	PE750x1060	K3306-39AS	Gland	HT150	2	100
25	PE750x1060	K3206-43	Groove wheel		1	1730
26	PE750x1060	K3206-44AS	Gland	HT150	2	20
27	PE750x1060	K3205-27	Adjustment bollt	Q235A	2	0.55
28	PE750x1060		Bearing 3003776		4	244
29	PE750x1060	SPC-8000	V belts		8	2.4
30	PE750x1060	K3206-42	NUT		1	8.32
31	PE750x1060	K3206-41	NUT		1	8.32
32	PE750x1060	K3206-52	Rings
33	PE750x1060	K3107.1	Frame		1	9510
34	PE750x1060	K3107-1	Down oblique iron	ZGMn13	1	37
35	PE750x1060	K3206-2	F Bolts	35	4	2.2
36	PE750x1060	K3107-2	Fixed jaw	ZGMn13	1	1440
37	PE750x1060	K3107-3	Down protect plate	ZGMn13	2	140
38	PE750x1060	K3107-4	Liner set		1	24
39	PE750x1060	K3206-15	Fixed jaw bolts	35	4	1.4
40	PE750x1060	K3206-16	Fixed jaw oblique iron	ZGMn13	1	47
41	PE750x1060	K3107-5	Upper side protect plate	Q235A	2	250
42	PE750x1060	K3107-6	side protect plate bolt	8.8	6	1.5
43	PE750x1060	K3107-8	Movable Jaw die	ZGMn13	1	1460
44	PE750x1060	K3107-9	Moving jaws	ZG270-500	1	4480
45	PE750x1060	K3107-10	Movable Jaw oblique iron	ZGMn13	1	55.5
46	PE750x1060	K3206-22	Movable Jaw bolts	35	4	10.5
47	PE750x1060	k3107-11	Movable Jaw protect plate		1	200
48	PE750x1060	k3107-12A	Eccentric shaft	S45	1	1580
49	PE750x1060	k3107-13	Adjustment set	ZG270-500	1	468
50	PE750x1060	k3107-14	Adjustment Gasket 10	Q235A	1	22
51	PE750x1060		Adjustment Gasket 20	Q235A	1	44
52	PE750x1060		Adjustment Gasket 15	Q235A	1	33
53	PE750x1060	K3107-15	Adjustment Gasket 10	Q235A	1	23.3
54	PE750x1060		Adjustment Gasket 20	Q235A	1	46.3
55	PE750x1060		Adjustment Gasket 15	Q235A	1	35
56	PE750x1060	K3107-17	Head	35	1	5.2
57	PE750x1060	K3107-18	Bush	Q235A	1	5.1
58	PE750x1060	K3107-19	Retaining plate	Q235A	2	30
59	PE750x1060	K3107-20	Bush	45	2	40
60	PE750x1060	K3107-22	Bolts	35	4	1.4
61	PE750x1060	K3107-23	oblique iron	Q235A	2	5.4
62	PE750x1060	K3107-24	Adjustment rod		2	4.5
63	PE750x1060	K3306-15	Movable Jaw bushing	ZG270-500	2	85
64	PE750x1060	K3306-23S	Movable Jaw bushing	HT150	2	33
65	PE750x1060	K3206-28	Retaining ring	Q235A	2	16
66	PE750x1060	K3206-44AS	Gland	HT150	2	20
67	PE750x1060	K3306-39AS	Gland	HT150	2	100
68	PE750x1060	K3206-47AS	Gland	HT150	2	60
69	PE750x1060	K3206-16S	Frame Gland	HT200	2	62
70	PE750x1060	K3206-27S	Groove wheel	HT150	1	230
71	PE750x1060	K3206-27	Adjustment bolt	Q235A	2	0.6
72	PE750x1060	K3206-9	Rods	45	2	2.5
73	PE750x1060	K3206-17	Spring set	Q235A	2	1.8
74	PE750x1060	K3206-14	Spring	60SiMn	2	17.5
75	PE750x1060	K3206-10	Spring set	Q235A	2	3
76	PE750x1060	K3206-11	Toggle Plate set	45	1	26
77	PE750x1060	K3206-8	Toggle Plate		1	230
78	PE750x1060	K3206-29	Flywheel		1	1960
79	PE750x1060	K3206-43	Groove wheel		1	1730
80	PE750x1060	3003776Y	Bearing		4	244
81	PE750x1060	gb5867-86	Expansion sets		2	13.2
82	PE750x1060	SPC-8000	V belts		8	2.4

PE800*1060

PE 800*1060 Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE800*1060	K3306-5	Fixed jaws iron plate	ZGMN13	1	43.5
2	PE800*1060	K3206-3B	Fixed jaw die	ZGMN13	1	1440
3	PE800*1060	K3107-2	Fixed jaw die	ZGMN13Cr2	1	1440
4	PE800*1060	K3107-2	Fixed jaw die	ZGMN13	1	1440
5	PE800*1060	K3206-20B	Movable jaw die	ZGMN13	1	1460
6	PE800*1060	K3107-8	Movable jaw die	ZGMN13Cr2	1	1460
7	PE800*1060	K3107-8	Movable jaw die	ZGMN13	1	1460
8	PE800*1060	K3107-1	jaws iron plate	ZGMN13	1	37
9	PE800*1060	K3107-10	jaws iron plate	ZGMN13	1	55.5
10	PE800*1060	K3306-9A	Eccentic shaft	S45	1	1580

PE870*1060

PE 870*1060 Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE870*1060	K3306-5	Fixed jaws iron plate	ZGMN13	1	43.5
2	PE870*1060	K3206-3B	Fixed jaw die	ZGMN13	1	1440
3	PE870*1060	K3107-2	Fixed jaw die	ZGMN13Cr2	1	1440
4	PE870*1060	K3107-2	Fixed jaw die	ZGMN13	1	1440
5	PE870*1060	K3206-20B	Movable jaw die	ZGMN13	1	1460
6	PE870*1060	K3107-8	Movable jaw die	ZGMN13Cr2	1	1460
7	PE870*1060	K3107-8	Movable jaw die	ZGMN13	1	1460
8	PE870*1060	K3107-1	jaws iron plate	ZGMN13	1	37
9	PE870*1060	K3107-10	jaws iron plate	ZGMN13	1	55.5
10	PE870*1060	K3306-9A	Eccentic shaft	S45	1	1580

PE900*1200

PE900*1200 Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE900*1200	K3105-1	Toggle	HT200	1	473
2	PE900*1200	K3105.2	Groove wheel	ht250	1	303
3	PE900*1200	K3105.1-2	Jaw plate bolt	45	3	5.5
4	PE900*1200	K3105.1-5	Spring	60Si2Mn	70	0.18
5	PE900*1200	K3105.1-6	Jaw plate bolt	45	1	9.4
6	PE900*1200	K3105.1-7	washer	Q235A	10	0.86
7	PE900*1200	K3105.1-8	Fixed jaw plate	ZGMN13-4	2	723
8	PE900*1200	K3105.1-9	Protect plate	45	1	147
9	PE900*1200	K3105.1.1	Fixed wedges		1	83
10	PE900*1200	K3105.1-10	Side plate nuts	45	4	2
11	PE900*1200	K3105.1-11	Upper side plate	ZGMN13-4	2	268
12	PE900*1200	K3105.1-12	Baffle	Q235A	4	20
13	PE900*1200	K3105.1-23	Sealing ring	ZG270-500	2	58
14	PE900*1200	K3105.1-29	Sealing ring	ZG270-500	2	60
15	PE900*1200	K3105.1-25	Sealing ring	ZG270-500	2	48
16	PE900*1200	K3105.1-28	Sealing ring	ZG270-500	2	50
17	PE900*1200	K3105.1-40	Fixed jaw plate	ZGMN13-4	1	423
18	PE900*1200	K3105.1-41	Down side plate	ZGMN13-4	2	106
19	PE900*1200	K3105.1-42	Jaw plate bolt	45	2	9
20	PE900*1200	K3105.1.7	Wedges		1	51
21	PE900*1200	K3105.2-1	Nuts	Q235A	2	0.2
22	PE900*1200	K3105.2-2	Bolts	Q235A	2	2.2
23	PE900*1200	K3105.2-3	Spring	60Si2Mn	6	0.11
24	PE900*1200	K3105.2-4	Briquettes	45	2	14
25	PE900*1200	K3105.2-5	Cap	ZG270-500	4	43
26	PE900*1200	K3105.2-6	Sealing ring	ZG270-500	2	51
27	PE900*1200	K3105.2-7	Moving jaw protect plate	ZG270-500	1	394
28	PE900*1200	K3105.2-8	Cap	ZG270-500	2	37
29	PE900*1200	K3105.2.1a	Briquettes		1	157
30	PE900*1200	K3105.2-12	Bushing	45	1	98
31	PE900*1200	K3105.2-13	Sealing ring	ZG270-500	2	29
32	PE900*1200	K3105.2-14	Sealing ring	ZG270-500	2	27
33	PE900*1200	K3105.2-16	Tighten bolts	45	3	9
34	PE900*1200	K3105.2-18	Movable jaw plate	ZGMN13-4	2	682
35	PE900*1200	K3105.2-19	Movable jaw plate	ZGMN13-4	1	394
36	PE900*1200	K3105.2-23	Liner set	45	1	48
37	PE900*1200	K3105.5-1	Rods		4	3
38	PE900*1200	K3105.5-2	Spring	60Si2Mn	1	46
39	PE900*1200	K3105.2.2	Moving jaw	ZG270-500	1	7500
40	PE900*1200	K3105.2-11	Eccentric shaft	45	1	1945
41	PE900*1200	E-9000	V belts		9	11.5
42	PE900*1200	3003780	Bearing		2	267
43	PE900*1200	8311	Bearing		2	1.3
44	PE900*1200	K3105.2-25	Sealing ring	ZG270-500	1	51
45	PE900*1200	K3105.2-26	Right bushing	45	2	98
46	PE900*1200	K3105.2-17b	Flywheel	ht250	1	2545
47	PE900*1200	K3105.2-20b	Groove wheel	ht250	1	2389
48	PE900*1200	K3105.2-15	File ring	ht250	2	60.5
49	PE900*1200	K3105.2-9	Tangential key	45	1	2.4
50	PE900*1200	K3105.2-10	Tangential key	45	1	2.2
51	PE900*1200	K3105.2.3	Briquettes		1	52
52	PE900*1200	K3105.2-1	Briquettes body	ZGMN13-4	1	110
53	PE900*1200	K3105.1-3	BUSH
54	PE900*1200	K3105.1-4	Adjust bolts
55	PE900*1200	K3105.4.2	Adjust sets
56	PE900*1200	K3105.2-11A	Eccentric shaft	s45	1	2074

PE1000*1200

PE 1000*1200 Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE1000x1200	K3105.1-8	Fixe jaw plate	ZGMn13-4	1	723
2	PE1000x1200	K3105.1-40	Fixe jaw plate	ZGMn13-4	1	423
3	PE1000x1200	K3105.1-18	Movable jaw plate	ZGMn13-4	1	682
4	PE1000x1200	K3105.1-19	Movable jaw plate	ZGMn13-4	1	394
5	PE1000x1200	K3116.1-1	Side protect plate	ZGMn13-4	1	388
6	PE1000x1200	K3116.1-2	Side protect plate	ZGMn13-4	1	134
7	PE1000x1200	K3105.2.1-1	Block body	ZGMn13-4	1	110

PE1200*1500

PE1200*1500 Jaw Crusher Parts Catalogue

Catalog	Crusher Type	Part Number	Description	Material	PCS	Weight
1	PE1200x1500	K3131-1a	Fixed jaw die	ZGMN13-4	1	1480
2	PE1200x1500	K3131-8a	Movable jaw die	ZGMN13-4	1	1567
3	PE1200x1500	K3131-41a	Movable jaw die	ZGMN13-4	1	410
4	PE1200x1500	K3131-4a	protect plate	ZGMN13-4	1	702
5	PE1200x1500	K3131-5a	protect plate	ZGMN13-4	1	280
6	PE1200x1500	K3131.2a	Plate	ZGMN13-4	1	364
7	PE1200x1500	K3131-6a	Wedge	ZGMN13-4	1	225
8	PE1200x1500	K3131-15a	Toggle plate set		1	107
9	PE1200x1500	K3131-25a	Toggle plate set		1	109
10	PE1200x1500	K3131.4a	Toggle plate		2	626
11	PE1200x1500	K3131.16a	Wedge		1	119
12	PE1200x1500	K3131-37a	Wedge		2	49.8
13	PE1200x1500	K3131-14a	Adjust set		1	912
14	PE1200x1500	K3131-19a	Spring rods		1	55
15	PE1200x1500	K3131-21a	Spring		1	60
16	PE1200x1500	K3131-9	side protect nuts		2
17	PE1200x1500	K3131-10a	nuts		2
18	PE1200x1500	K3131-39a	Tighten the bolts		2
19	PE1200x1500	K3131-10a	Tighten the bolts		2
20	PE1200x1500	K3131-44a	Tighten the bolts		2
21	PE1200x1500	K3131-9a	Eccentric shaft	37	1	3770

PE Series Jaw Crusher Parts

What is the PE series jaw crusher?
